Micro Heater (Sheathed Heater)

Distinction : Easy install, easy winding: Because of outside diameter is so small.

①Both end basic type
micro heater
②One end basic type
micro heater 		③With non-heat generating
portion type micro heater

両端子型マイクロヒーター

片端子型マイクロヒーター

 非発熱部付マイクロヒーター

④Heat trace
ヒートトレース１ ヒートトレース２

Micro-heater resistance value table

Compare to other micro heater company, we have various range of wire resistance value.
Easy to design any type of micro heater. In addition , the more variation through a combination of resistance .
According to the needs of your special resistance . Displayed in red for there are currently in stock .

マイクロヒーター１

Micro-heater resistance value table（Ω/ｍ）　 Material（ＳＵＳ316）
Sheath diameter
1 Core
2 Core
3 Core
4 Core
6
1.0
28
13.5
9
37
77
114
1.4
42
1.6
11
2.4
14.5
20
30
45
60
75
77.5
2.3
15.8
2.4
4.6
6.4
13.7
21
6.9
42
55
55
2.8
4.7
5.98
10.1
15.3
10.6
41
13.34
3.0
8.6
3.2
2.4
1.1
0.68
3.6
7.6
12
26
3.9
8.5
7
32　
3.4
0.9
4.0
1.6
2.2
4.91
7.39
5.2
4.3
4.5
6
4.6
1.26
5.43
4.8
1.5
1.6
3.3
3.3
3.6
5.6
8
9.4
12
5.0
1.56
3.3
5.1
1.12
1.6
5.8
3.25
5.9
2.8
6.0
2.3
6.4
0.8
0.97
7.0
1.7
7.1
2.15
8.0
1.3
1.69

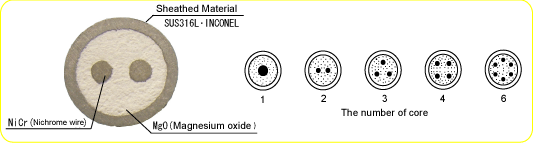

※ Single core type resistance ( The case of multi-core , resistance x the number of core )

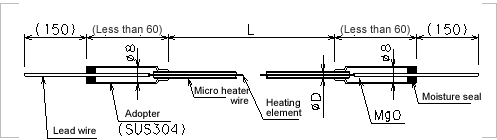

①Both end basic type micro heater

両端子型ＭＨ図面



Go to Top 　

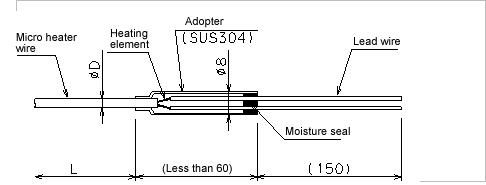

②One end basic type micro heater

片端子型ＭＨ図面



Go to Top 　

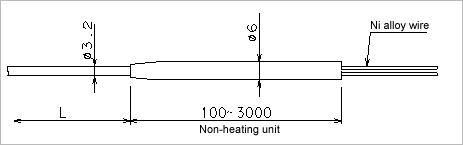

③With non-heat generating portion type micro heater

Our original product. Difficult problem encountered in the use of a vacuum unit with non-heat generating unit.
Non-heat generating unit is less than 100mm 3000mm. Prices vary depending on the length of the non-heating unit .

非発熱部付ＭＨ図面



Go to Top 　



④Heat trace

Use:
(About prices, contact our Internet Sales Dep.)
　
Winding pipe
Embedding groove
Hopper mounting
Mounting plate heat
Nozzle heater 		ヒートトレース１ ヒートトレース２



Go to Top 　　

Note: Other sizes or lengths available, contact our Internet Sales Dep .
